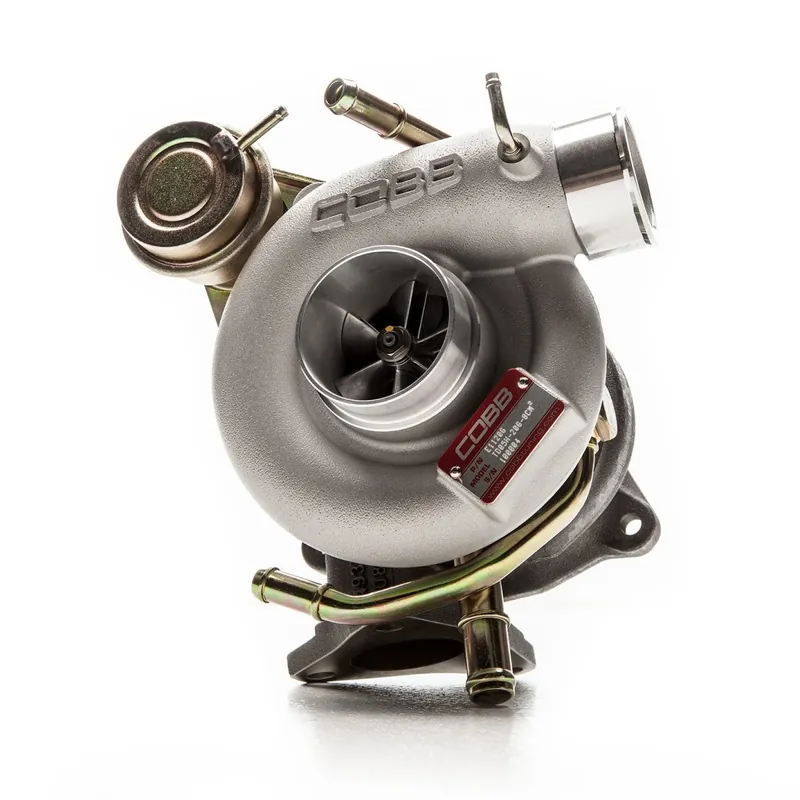

COBB TD05H-20G Turbocharger 2008-2021 STI Bulk Order

Description

The COBB TD05H-20G is an ideal turbo upgrade for those looking to increase the top-end power of their STI while maintaining low and mid-range response. Capable of producing 400hp and retaining excellent throttle response, the COBB 20G is a perfect turbocharger for street or track use!

Features:

• 20G Compressor Housing with 68mm Billet Wheel
• 8cm^2 Turbine Housing with 55.8mm Wheel (TD05H)
• 640 CFM
• .57 A/R
• 1 Bar Actuator

Specs:

• Single Scroll exhaust housing
• Offset compressor outlet for more room around the throttle by wire connector
• Sleeve bearing turbo with 360 degree thrust bearings with modified oiling strategy for greater thrust capacity
• Compressor- Inducer: 52.5mm Exducer: 68mm
• Turbine- Inducer: 55.8mm Exducer: 49.2mm

This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer’s application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number:

D-660-14
D-660-46

Installation Instructions
